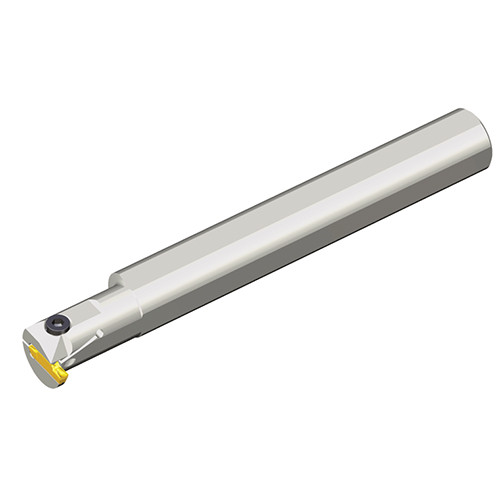

Boring bars with coolant hole for internal grooving & turning
Additional information
Weight
1.4800 kg
Dimensions
barcode
Additional Information

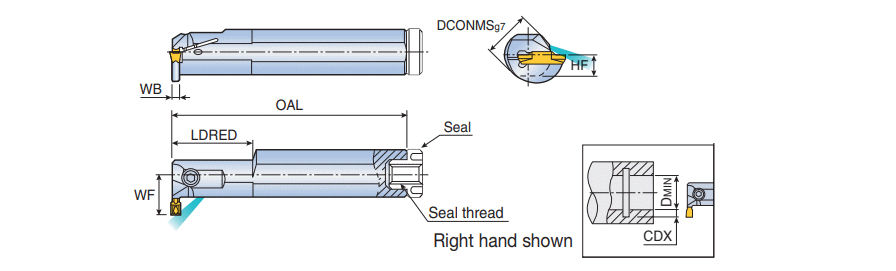

Cutting Depth Maximum (CDX): 5.5 mm
Overall Length (OAL): 250 mm
Shank Width (B): 14.5 mm

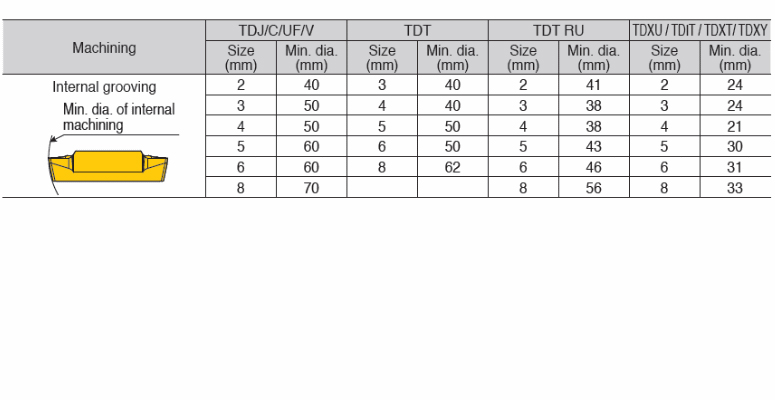

Application:, Int. Groove & Turn, Int. Grooving, Int. Profiling, Minimum Bore Diameter (DMIN): 37 mm
Body Material: Steel
Functional Width (WF): 21.3 mm
Measurement Type: Metric
Head Length (LH): 60 mm
Unit: M
