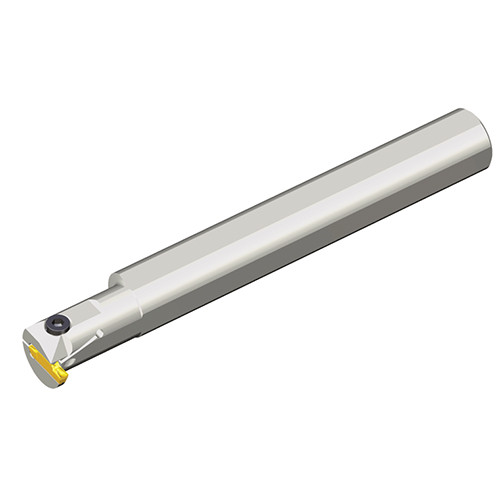

Boring bars with coolant hole for internal grooving & turning
Additional information
Weight
2.7500 kg
Dimensions
barcode
Additional Information

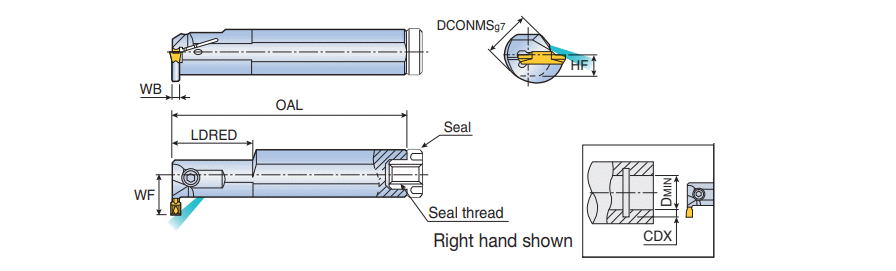

Cutting Depth Maximum (CDX): 12 mm
Overall Length (OAL): 300 mm
Shank Width (B): 19 mm
Application:, Int. Groove & Turn, Int. Grooving, Int. Profiling, Minimum Bore Diameter (DMIN): 50 mm
Body Material: Steel
Functional Width (WF): 33 mm
Measurement Type: Metric
Head Length (LH): 65 mm
Unit: M
