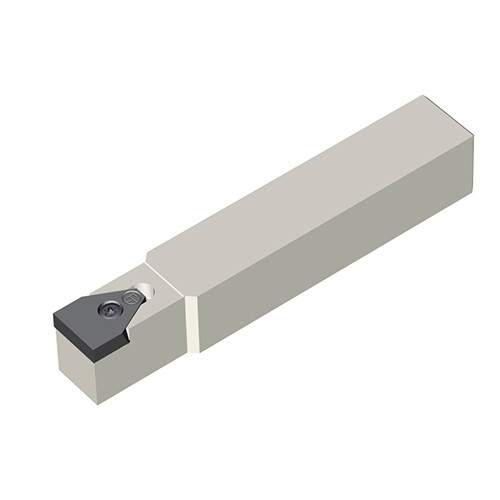

External holder for special form profiling with TGUX inserts (Semi-finished)
Additional information
Weight
0.1300 kg
Dimensions
barcode

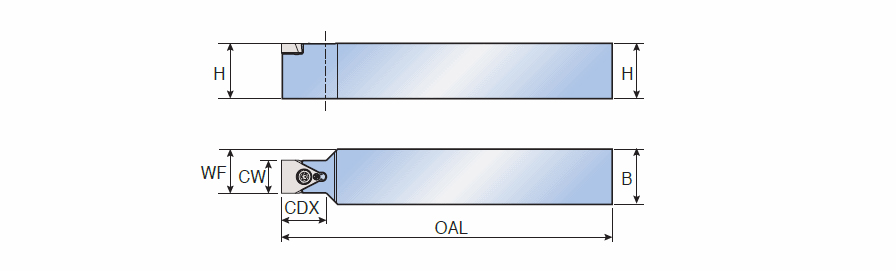

Additional Information
Shank Height (H): 12 mm
Application:, Ext. Grooving, Form Grooving, Tools for Swiss Machines, Shank Width (B): 12 mm
Cutting Depth Maximum (CDX): 20 mm
Overall Length (OAL): 125 mm
Body Material: Steel
Functional Width (WF): 10 mm
Measurement Type: Metric
Cutting Direction (HAND): Neutral
Unit: M
