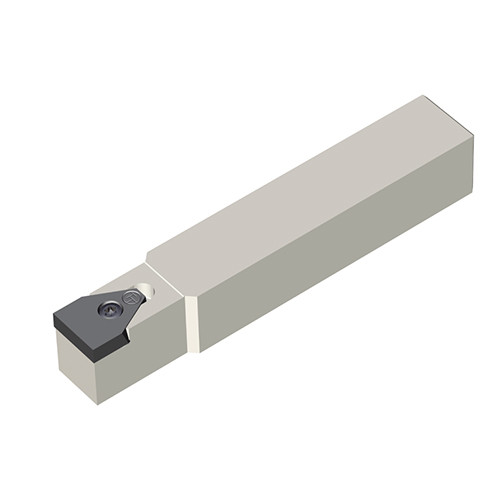

External holder for special form profiling with TGUX inserts (Semi-finished)
Additional information
Weight
0.7200 kg
Dimensions
barcode
Additional Information

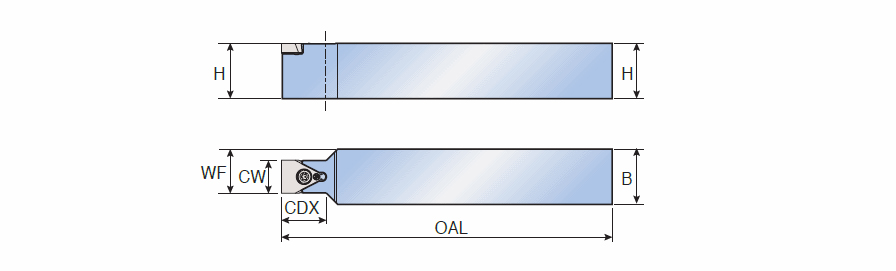

Shank Height (H): 25 mm
Application:, Ext. Grooving, Form Grooving, Tools for Swiss Machines, Shank Width (B): 25 mm
Cutting Depth Maximum (CDX): 20 mm
Overall Length (OAL): 150 mm
Body Material: Steel
Functional Width (WF): 15 mm
Measurement Type: Metric
Cutting Direction (HAND): Neutral
Unit: M
