Taegutec TTMT21 20 W TT9030

Product Code: 6198578

$120.77$109.79 Ex. GST

Product Code: 6198578 SKU 6198578 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

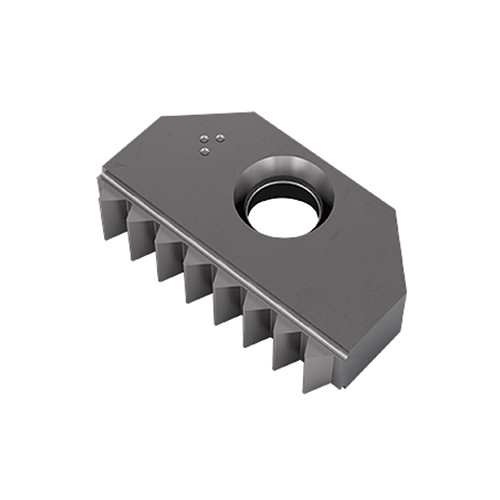

External & internal Whitworth (BSW, BSF, BSP) full profile thread milling inserts for fittings and pipe couplings

Additional information

Weight 0.0189 kg
barcode
Additional Information

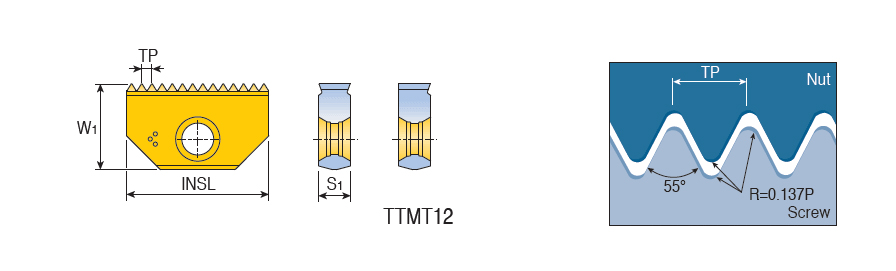

Threads per Inch (TPI): 20 Threads/
Grade: TT9030
Insert Length (INSL): 21 mm
Cutting Edge Material: Carbide
Insert Width (W1): 12.6 mm
Coating: TiAlN
Insert Thickness Total (S1): 4.8 mm
Measurement Type: Metric
Application:, External Thread Milling, Internal Thread Milling, Body Material: Carbide
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Unit: M

Brand

Taegutec
