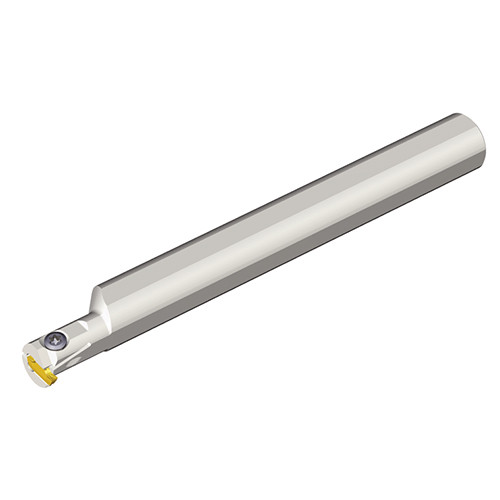

Boring bars with coolant hole for internal turning and grooving on small diameter of Dmin = 12.5 mm with TDIM/P inserts
Additional information
Weight
0.1900 kg
Dimensions
barcode
Additional Information
Cutting Depth Maximum (CDX): 3 mm
Overall Length (OAL): 150 mm
Shank Width (B): 7.5 mm
Application:, Int. Groove & Turn, Int. Grooving, Int. Profiling, Tools for Swiss Machines, Minimum Bore Diameter (DMIN): 16 mm
Body Material: Steel
Functional Width (WF): 11 mm
Measurement Type: Metric
Head Length (LH): 40 mm
Unit: M
