Home » Shop » CUTTING TOOLS » Carbide » TOOLHODER » Taegutec TTVEL 1616-4

Taegutec TTVEL 1616-4

Product Code: 6865552

$181.65$165.14 Ex. GST

Product Code: 6865552 SKU 6865552 Categories Carbide, CUTTING TOOLS (HSS & Carbide), TOOLHODER

Taegutec TTVEL 1616-4

Taegutec TTVEL 1616-4 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

TOPCUT holders for parting & grooving, front turning & reverse turning

Additional information

Weight	0.2450 kg
Dimensions
barcode

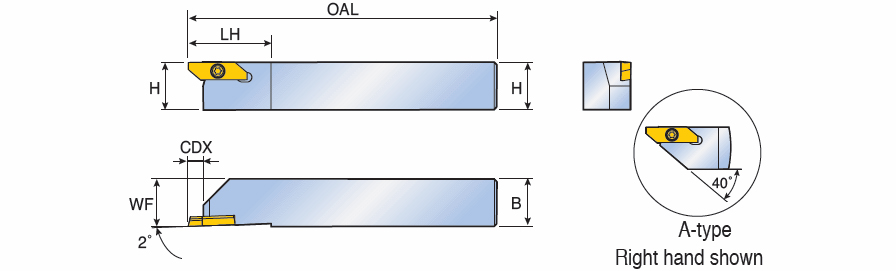

Additional Information	Shank Height (H): 16 mm Body Material: Steel Shank Width (B): 16 mm Work Piece Parting Diameter Maximum (CUTDIA): 1 Cutting Width Minimum (CWN): 0.7 mm Cutting Direction (HAND): Left Hand Cutting Width Maximum (CWX): 3.97 mm Measurement Type: Metric Overall Length (OAL): 125 mm Master Insert Identification (MIID): TVEL 40010 Head Length (LH): 29 mm Unit: M Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Reverse Turning, Ext. Turning, Parting, Tools for Swiss Machines

Brand

Taegutec
