Taegutec UHP 4160X40X92R1.0 TT5520

Product Code: 6237512

$419.43$381.30 Ex. GST

Product Code: 6237512 SKU 6237512 Categories Carbide, CUTTING TOOLS (HSS & Carbide), ENDMILLS & SLOTDRILLS

Taegutec UHP 4160X40X92R1.0 TT5520

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

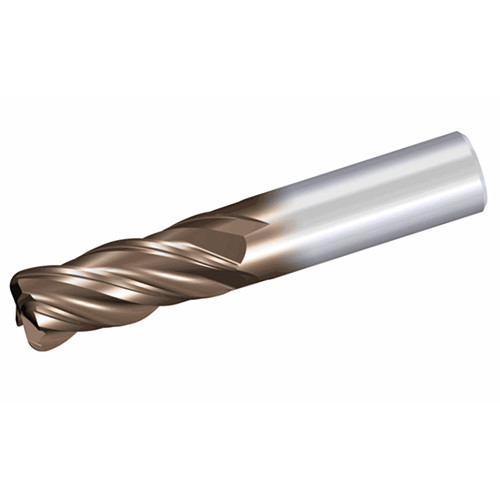

4 flute, corner R type solid carbide end mills with different helix and unequal spacing for machining of steels including alloy,carbon, mold as well as stainless

Additional information

Weight	0.2310 kg
Dimensions
barcode
Additional Information	Cutting Diameter (DC): 16 mm End Shape: Corner Radius Connection Diameter Machine Side (DCONMS): 16 mm Applicable Material:, Steel, Stainless Steel, Cast Iron, Depth of Cut Maximum (APMX): 40 mm Application:, Drill Mill, Helical Interpolation, Rampdown, Shouldering, Slotting, Solid Carbide End Mills, Step down machining, Overall Length (OAL): 92 mm Corner Radius (RE): 1 mm Cutting Edge Material: Carbide Grade: TT5520 Coating: AlCrN Body Material: Carbide Flute Count (NOF): 4 Measurement Type: Metric Flute Helix Angle (FHA): 0 Degrees Unit: M Shank Type: Round

Brand

Taegutec
