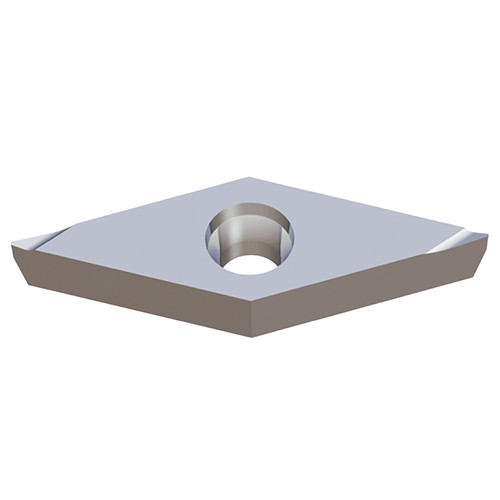

Taegutec VBGT 110301 R-FF CT3000

Applicable Material:, Steel, Stainless Steel, Cast Iron, Grade: CT3000
Application:, Ext 117.5° App 35° Diamond, Ext 72.5° App 35° Diamond, Ext 93° App 35° Diamond, Ext 93° App Sleeve 35° Diamond, Ext 95° App Shift 35°Diamond, Inserts, Int 100° App 70° Diamond, Int 108° App 35° Diamond, Int 117.5 App 35° Diamond, Int 142° App 35° Diamond, Int 93° App 35° Diamond, Tools for Swiss Machines, Y Axis holders, Min D.O.C.: 0.1 mm
Corner Radius (RE): 0.1 mm
Depth of Cut Maximum (APMX): 0.5 mm
Cutting Edge Length (L): 0 mm
Min. Turning Feed (ft(min)): 0.03 mm/rev
Insert Thickness (S): 3.18 mm
Max. Turning Feed (ft(max)): 0.12 mm/rev
Inscribed Circle Diameter (IC): 6.35 mm
Measurement Type: Metric
Cutting Edge Material: Cermet
Body Material: Carbide
Coating: Cermet
Unit: M
