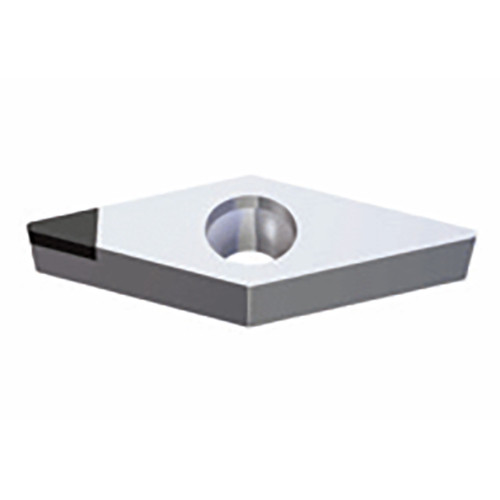

Taegutec VBGW 160402 LS2 TB670

Applicable Material:, Hard Materials, Grade: TB670
Application:, Ext 117.5° App 35° Diamond, Ext 72.5° App 35° Diamond, Ext 93° App 35° Diamond, Ext 93° App Sleeve 35° Diamond, Ext 95° App Shift 35°Diamond, Inserts, Int 100° App 70° Diamond, Int 108° App 35° Diamond, Int 117.5 App 35° Diamond, Int 142° App 35° Diamond, Int 93° App 35° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.05 mm
Corner Radius (RE): 0.2 mm
Depth of Cut Maximum (APMX): 0.5 mm
Cutting Edge Length (L): 16.6 mm
Min. Turning Feed (ft(min)): 0.05 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.3 mm/rev
Inscribed Circle Diameter (IC): 9.52 mm
Measurement Type: Metric
Cutting Edge Material: PCBN
Body Material: Carbide
Coating: Uncoated
Unit: M
