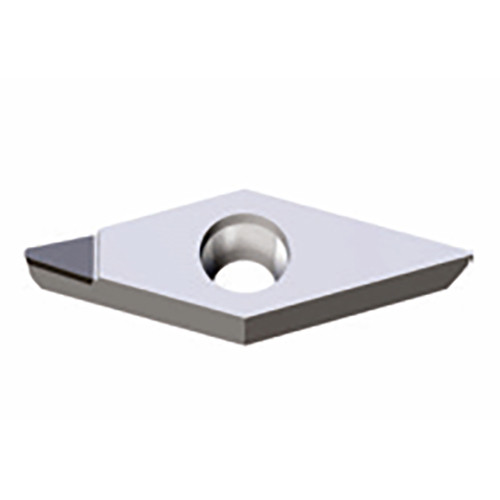

Taegutec VBGW 160404 LN-7 KP300

Description

Positive 35° Rhombic inserts with single PCD tip of positive rake angle for finishing of aluminum & non-ferrous metals

Weight	0.0160 kg
barcode
Additional Information	Applicable Material:, Aluminum / Non-Ferrous Materials, Grade: KP300 Application:, Ext 117.5° App 35° Diamond, Ext 72.5° App 35° Diamond, Ext 93° App 35° Diamond, Ext 93° App Sleeve 35° Diamond, Ext 95° App Shift 35°Diamond, Inserts, Int 100° App 70° Diamond, Int 108° App 35° Diamond, Int 117.5 App 35° Diamond, Int 142° App 35° Diamond, Int 93° App 35° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.1 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 2 mm Cutting Edge Length (L): 16.6 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.3 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: PCD Body Material: Carbide Coating: PCD Unit: M
