Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec VBGW 160408 LS TB7015
$95.37$86.70 Ex. GST

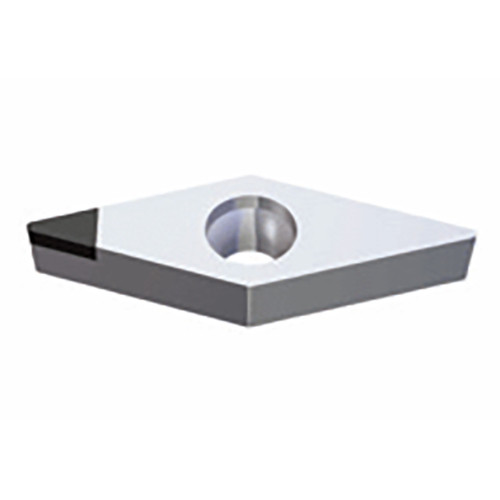

Positive 35° Rhombic inserts with CBN tips for finishing of hardened steels and cast irons
Applicable Material:, Cast Iron, Hard Materials, Grade: TB7015 Application:, Ext 117.5° App 35° Diamond, Ext 72.5° App 35° Diamond, Ext 93° App 35° Diamond, Ext 93° App Sleeve 35° Diamond, Ext 95° App Shift 35°Diamond, Inserts, Int 100° App 70° Diamond, Int 108° App 35° Diamond, Int 117.5 App 35° Diamond, Int 142° App 35° Diamond, Int 93° App 35° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.05 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 0.5 mm Cutting Edge Length (L): 16.6 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.3 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: PCBN Body Material: Carbide Coating: Uncoated Unit: M
$200.78$182.53 Ex. GST
$151.09$137.35 Ex. GST
$135.81$123.46 Ex. GST
$143.07$130.06 Ex. GST
$13.54$12.31 Ex. GST
