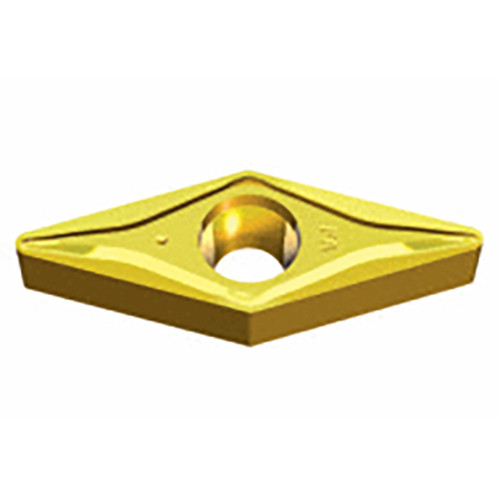

Taegutec VBMT 110304 FA CT3000

Description

Positive 35° Rhombic inserts for super-finishing in steel, stainless steels and exotic materials with excellent chip control and 5 clearance angle

Weight	0.0025 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Cast Iron, Grade: CT3000 Application:, Ext 117.5° App 35° Diamond, Ext 72.5° App 35° Diamond, Ext 93° App 35° Diamond, Ext 93° App Sleeve 35° Diamond, Ext 95° App Shift 35°Diamond, Inserts, Int 100° App 70° Diamond, Int 108° App 35° Diamond, Int 117.5 App 35° Diamond, Int 142° App 35° Diamond, Int 93° App 35° Diamond, Tools for Swiss Machines, Y Axis holders, Min D.O.C.: 0.2 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 1.5 mm Cutting Edge Length (L): 11.1 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 3.18 mm Max. Turning Feed (ft(max)): 0.2 mm/rev Inscribed Circle Diameter (IC): 6.35 mm Measurement Type: Metric Cutting Edge Material: Cermet Body Material: Carbide Coating: Cermet Unit: M
