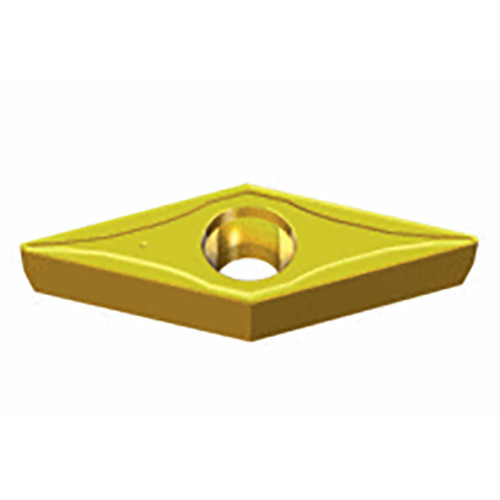

Taegutec VBMT 160404 FG TT5080

Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Fixing Hole Diameter (D1): 4.4 mm
Application:, Ext 117.5° App 35° Diamond, Ext 72.5° App 35° Diamond, Ext 93° App 35° Diamond, Ext 93° App Sleeve 35° Diamond, Ext 95° App Shift 35°Diamond, Inserts, Int 100° App 70° Diamond, Int 108° App 35° Diamond, Int 117.5 App 35° Diamond, Int 142° App 35° Diamond, Int 93° App 35° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.5 mm

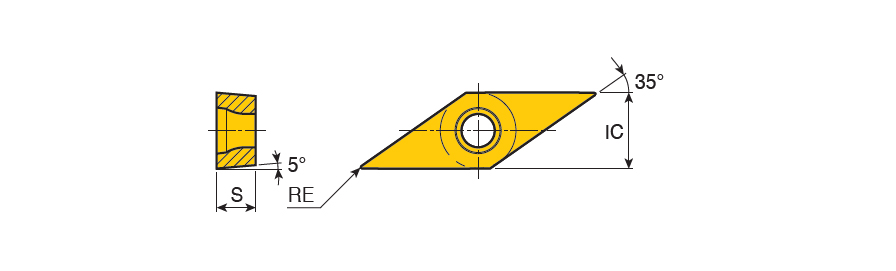

Corner Radius (RE): 0.4 mm
Depth of Cut Maximum (APMX): 1.5 mm
Cutting Edge Length (L): 16.6 mm
Min. Turning Feed (ft(min)): 0.07 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.2 mm/rev
Inscribed Circle Diameter (IC): 9.52 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiAlN+TiN
Unit: M
Grade: TT5080
