Taegutec VBMT 160404 PC TT8115B

Description

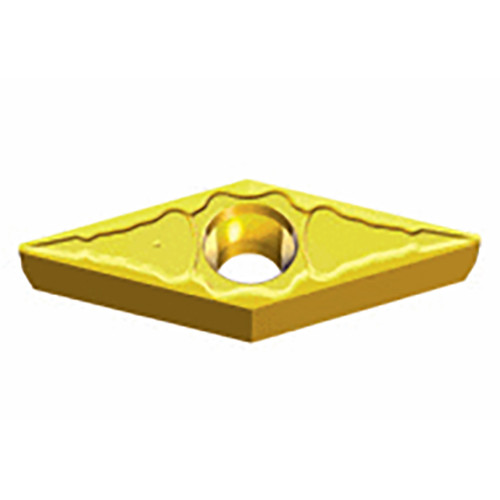

Positive 35° Rhombic inserts for medium applications of wide variety of materials with 5° clearance angle & low cutting force

Weight	0.0110 kg
barcode
Additional Information	Applicable Material:, Steel, Grade: TT8115B Application:, Ext 117.5° App 35° Diamond, Ext 72.5° App 35° Diamond, Ext 93° App 35° Diamond, Ext 93° App Sleeve 35° Diamond, Ext 95° App Shift 35°Diamond, Inserts, Int 100° App 70° Diamond, Int 108° App 35° Diamond, Int 117.5 App 35° Diamond, Int 142° App 35° Diamond, Int 93° App 35° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.5 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 2.8 mm Cutting Edge Length (L): 16.6 mm Min. Turning Feed (ft(min)): 0.07 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.22 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
