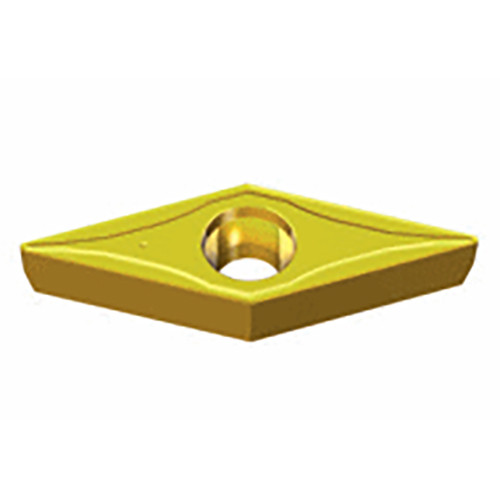

Taegutec VBMT 160408 FG TT3010

Description

Positive 35° Rhombic inserts for finish to medium light applications of steels & stainless steels with 5° clearance angle & excellent chip control

Weight	0.0037 kg
barcode
Additional Information	Applicable Material:, Super-Alloys / Titanium, Fixing Hole Diameter (D1): 4.4 mm Application:, Ext 117.5° App 35° Diamond, Ext 72.5° App 35° Diamond, Ext 93° App 35° Diamond, Ext 93° App Sleeve 35° Diamond, Ext 95° App Shift 35°Diamond, Inserts, Int 100° App 70° Diamond, Int 108° App 35° Diamond, Int 117.5 App 35° Diamond, Int 142° App 35° Diamond, Int 93° App 35° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.4 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 1.5 mm Cutting Edge Length (L): 16.6 mm Min. Turning Feed (ft(min)): 0.1 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.18 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: AlTiN+TiN Unit: M Grade: TT3010
