Taegutec VBMT 160408 MT TT5080

Description

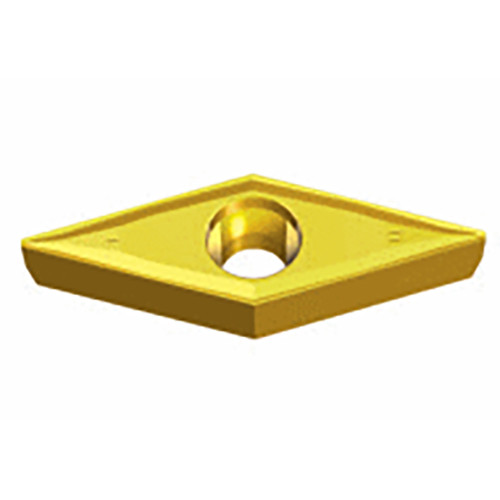

Positive 35° Rhombic inserts for medium to medium rough applications of steel, stainless steel and cast iron with 5° clearance angle

Weight	0.0117 kg
barcode
Additional Information	Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Grade: TT5080 Application:, Ext 117.5° App 35° Diamond, Ext 72.5° App 35° Diamond, Ext 93° App 35° Diamond, Ext 93° App Sleeve 35° Diamond, Ext 95° App Shift 35°Diamond, Inserts, Int 100° App 70° Diamond, Int 108° App 35° Diamond, Int 117.5 App 35° Diamond, Int 142° App 35° Diamond, Int 93° App 35° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.9 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 3 mm Cutting Edge Length (L): 16.6 mm Min. Turning Feed (ft(min)): 0.13 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.3 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiAlN+TiN Unit: M
