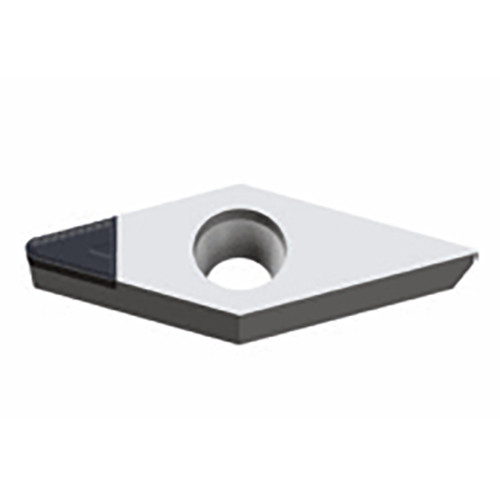

Taegutec VCGT 110302 CB KP300

Applicable Material:, Aluminum / Non-Ferrous Materials, Grade: KP300
Application:, Ext 72.5° App 35° Diamond, Ext 93° App 35° Diamond, Holder for Swiss Machines, Inserts, Int 100° App 70° Diamond, Int 108° App 35° Diamond, Int 117.5 App 35° Diamond, Int 142° App 35° Diamond, Int 93° App 35° Diamond, Min D.O.C.: 0.5 mm
Corner Radius (RE): 0.2 mm
Depth of Cut Maximum (APMX): 2 mm
Cutting Edge Length (L): 11.1 mm
Min. Turning Feed (ft(min)): 0.1 mm/rev
Insert Thickness (S): 3.18 mm
Max. Turning Feed (ft(max)): 0.5 mm/rev
Inscribed Circle Diameter (IC): 6.35 mm
Measurement Type: Metric
Cutting Edge Material: PCD
Body Material: Carbide
Coating: PCD
Unit: M
