Taegutec VCGT 110302M SL-F TT4410

Description

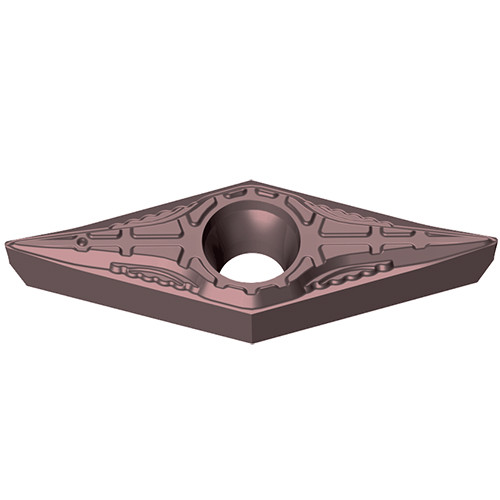

Positive 7° clearance & ground 35° rhombic inserts with sharp cutting edge for super finishing of small parts on swiss type automatic lathes

Weight	0.0037 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT4410 Application:, Ext 72.5° App 35° Diamond, Ext 93° App 35° Diamond, Inserts, Int 100° App 70° Diamond, Int 108° App 35° Diamond, Int 117.5 App 35° Diamond, Int 142° App 35° Diamond, Int 93° App 35° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.02 mm Corner Radius (RE): 0.2 mm Depth of Cut Maximum (APMX): 0.25 mm Cutting Edge Length (L): 11.1 mm Min. Turning Feed (ft(min)): 0.02 mm/rev Insert Thickness (S): 3.18 mm Max. Turning Feed (ft(max)): 0.1 mm/rev Inscribed Circle Diameter (IC): 6.35 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: Multi AlTiCrN Unit: M
