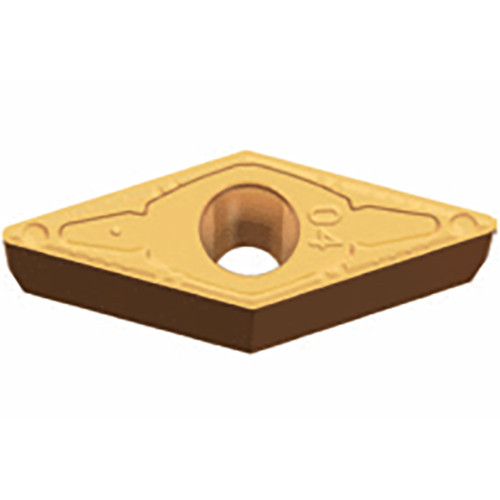

Taegutec VCMT 080202 FM TT5080

Description

Positive 35° Rhombic inserts for medium and semi-finishing machining of steels & stainless steels with low cutting force & 7° clearance angle

Weight	0.0025 kg
barcode
Additional Information	Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Grade: TT5080 Application:, Ext 72.5° App 35° Diamond, Ext 93° App 35° Diamond, Inserts, Int 100° App 70° Diamond, Int 108° App 35° Diamond, Int 117.5 App 35° Diamond, Int 142° App 35° Diamond, Int 93° App 35° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.5 mm Corner Radius (RE): 0.2 mm Depth of Cut Maximum (APMX): 1.5 mm Cutting Edge Length (L): 0 mm Min. Turning Feed (ft(min)): 0.07 mm/rev Insert Thickness (S): 2.38 mm Max. Turning Feed (ft(max)): 0.15 mm/rev Inscribed Circle Diameter (IC): 4.76 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiAlN+TiN Unit: M
