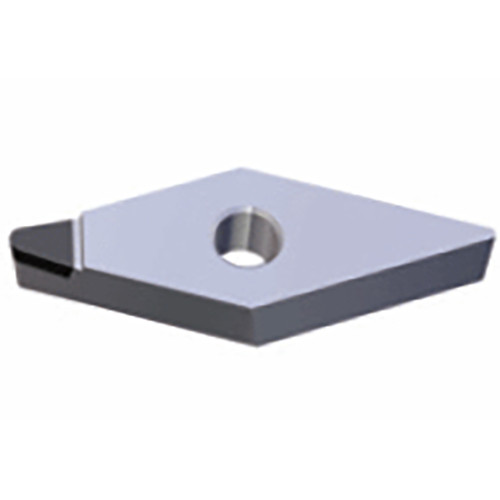

Taegutec VNGA 160408 LN-10 TD810

Description

Negative 35° Rhombic inserts with single PCD tip of positive angle for finishing of aluminum and non-ferrous metal

Weight	0.0163 kg
barcode
Additional Information	Applicable Material:, Aluminum / Non-Ferrous Materials, Grade: TD810 Application:, Ext 117.5° App 35° Diamond, Ext 72.5° App 35° Diamond, Ext 93° App 35° Diamond, Inserts, Int 100° App 70° Diamond, Int 117.5 App 35° Diamond, Int 95° App 35° Diamond, Min D.O.C.: 0.1 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 2 mm Cutting Edge Length (L): 16.6 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.2 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: PCD Body Material: Carbide Coating: PCD Unit: M
