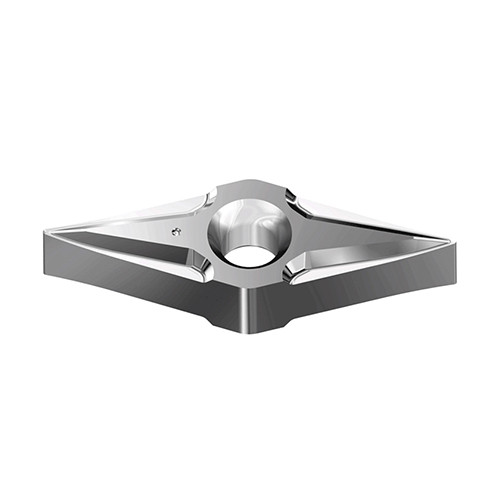

Taegutec VNGX 130401 ML TT5080

Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Grade: TT5080
Application:, Ext 117.5° App 35° Diamond, Ext 72.5° App 35° Diamond, Ext 93° App 35° Diamond, Inserts, Int 100° App 70° Diamond, Int 117.5 App 35° Diamond, Int 95° App 35° Diamond, Tools for Swiss Machines, Min D.O.C.: 0.1 mm
Corner Radius (RE): 0.1 mm
Depth of Cut Maximum (APMX): 1 mm
Cutting Edge Length (L): 16.6 mm
Min. Turning Feed (ft(min)): 0.03 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.1 mm/rev
Inscribed Circle Diameter (IC): 7.94 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiAlN+TiN
Unit: M
