Taegutec VNMG 160408 FX PV3010

Description

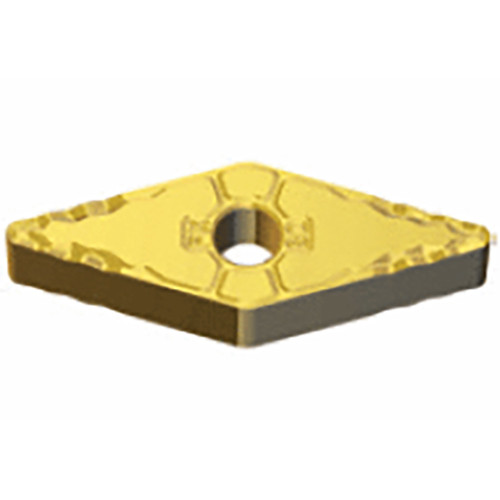

Negative 35° Rhombic inserts for finishing of mild steels with optimal chip control on pulley & ball stud machining

Weight	0.0074 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Cast Iron, Grade: PV3010 Application:, Ext 117.5° App 35° Diamond, Ext 72.5° App 35° Diamond, Ext 93° App 35° Diamond, Inserts, Int 100° App 70° Diamond, Int 117.5 App 35° Diamond, Int 95° App 35° Diamond, Min D.O.C.: 0.2 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 2 mm Cutting Edge Length (L): 16.6 mm Min. Turning Feed (ft(min)): 0.07 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.2 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Cermet Body Material: Carbide Coating: TiN Unit: M
