Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec VNMG 160408 PC TT8125B
$39.37$35.79 Ex. GST

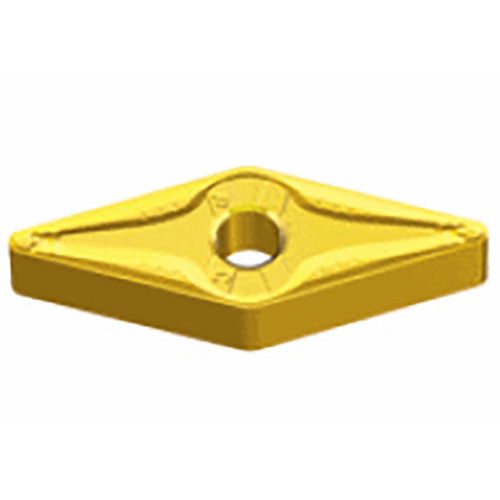

Negative 35° Rhombic inserts for medium to semi-finishing applications of steels & automotive parts
Applicable Material:, Steel, Grade: TT8125B Application:, Ext 117.5° App 35° Diamond, Ext 72.5° App 35° Diamond, Ext 93° App 35° Diamond, Inserts, Int 100° App 70° Diamond, Int 117.5 App 35° Diamond, Int 95° App 35° Diamond, Min D.O.C.: 0.5 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 3 mm Cutting Edge Length (L): 16.6 mm Min. Turning Feed (ft(min)): 0.17 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.36 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
