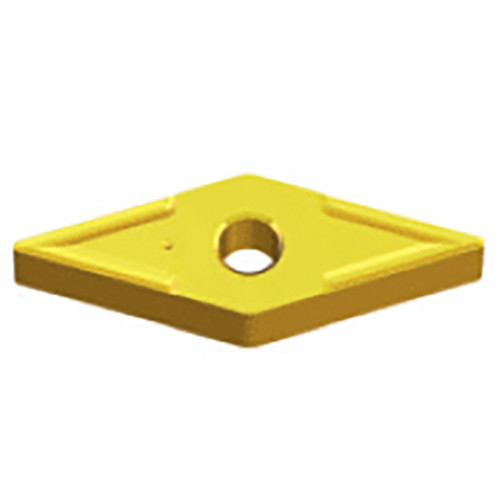

Taegutec VNMG 160408 TT7005

Applicable Material:, Cast Iron, Grade: TT7005
Application:, Ext 117.5° App 35° Diamond, Ext 72.5° App 35° Diamond, Ext 93° App 35° Diamond, Inserts, Int 100° App 70° Diamond, Int 117.5 App 35° Diamond, Int 95° App 35° Diamond, Min D.O.C.: 1.5 mm
Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 3 mm
Cutting Edge Length (L): 16.6 mm
Min. Turning Feed (ft(min)): 0.17 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.5 mm/rev
Inscribed Circle Diameter (IC): 9.52 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN+Al2O3
Unit: M
