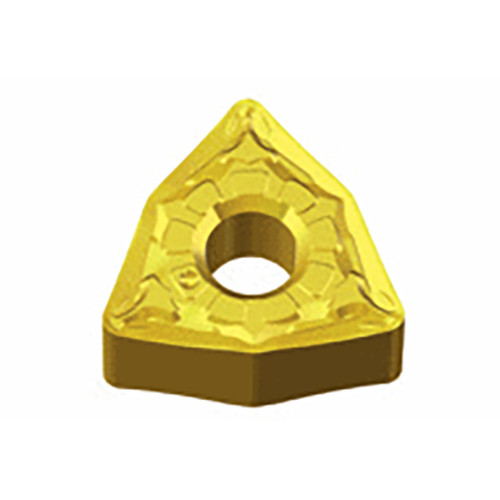

Taegutec WNMG 060404 FG CT3000

Product Code: 5801557

$17.00$15.45 Ex. GST

Product Code: 5801557 SKU 5801557 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Taegutec WNMG 060404 FG CT3000

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Negative 80° Trigon inserts for finishing & semi-finishing of steels, stainless steels and cast irons

Additional information

Weight	0.0038 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Cast Iron, Grade: CT3000 Application:, Ext 95° App 80°Trigon, Inserts, Int 95° App 80° Trigon, Min D.O.C.: 0.5 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 2 mm Cutting Edge Length (L): 6.52 mm Min. Turning Feed (ft(min)): 0.07 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.2 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Cermet Body Material: Carbide Coating: Cermet Unit: M

Brand

Taegutec
