Taegutec WNMG 080404 MT TT8020

Product Code: 5518079

$24.76$22.51 Ex. GST

Product Code: 5518079 SKU 5518079 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

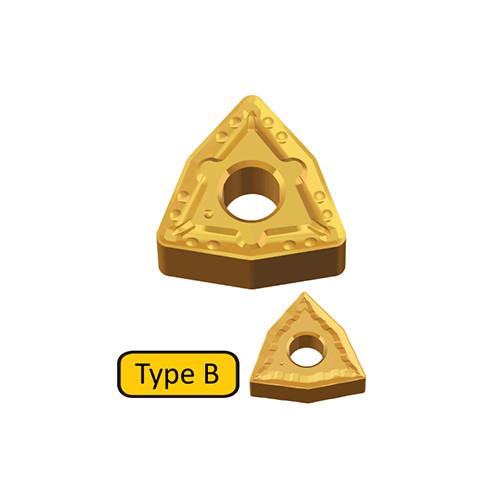

Taegutec WNMG 080404 MT TT8020

Taegutec WNMG 080404 MT TT8020 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Negative 80° Trigon inserts for medium rough applications of steel, cast iron & stainless steel

Additional information

Weight	0.0104 kg
barcode

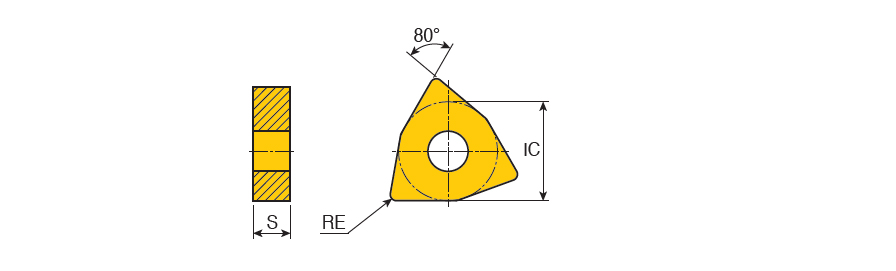

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8020 Application:, Ext 95° App 80°Trigon, Inserts, Int 95° App 80° Trigon, Min D.O.C.: 1 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 4 mm Cutting Edge Length (L): 8.7 mm Min. Turning Feed (ft(min)): 0.12 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.4 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN Unit: M

Brand

Taegutec
