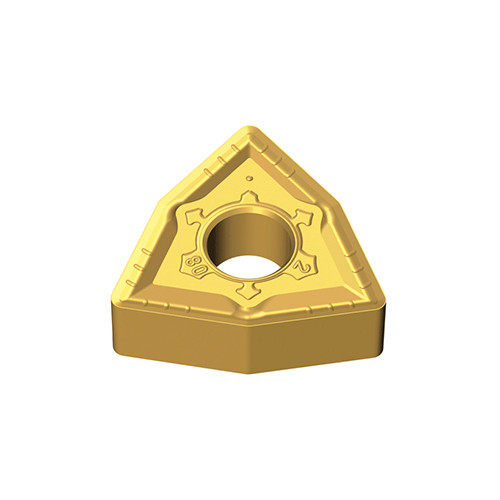

Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec WNMG 080408 MGS TT3005
$23.58$21.44 Ex. GST
Negative 80° Trigon inserts for medium to semi-finishing applications of heat resistant super alloys
Applicable Material:, Super-Alloys / Titanium, Grade: TT3005 Application:, Ext 95° App 80°Trigon, Inserts, Int 95° App 80° Trigon, Min D.O.C.: 1 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 4 mm Cutting Edge Length (L): 8.7 mm Min. Turning Feed (ft(min)): 0.15 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.4 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN/Al2O3/TiCN Unit: M
