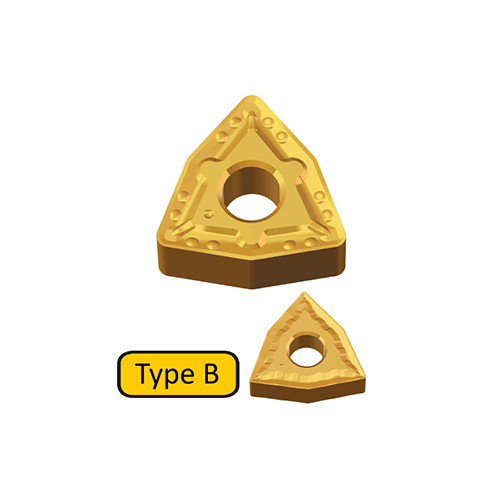

Taegutec WNMG 080408 MT TT8020

Description

Negative 80° Trigon inserts for medium rough applications of steel, cast iron & stainless steel

Weight	0.0100 kg
Dimensions	Length 1cm x Width 0.6cm x Depth 0.2cm
barcode

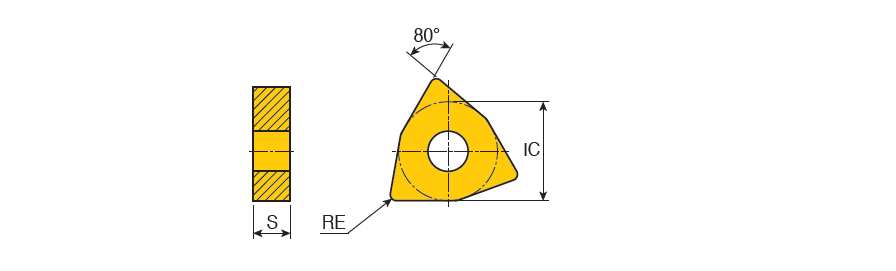

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8020 Application:, Ext 95° App 80°Trigon, Inserts, Int 95° App 80° Trigon, Min D.O.C.: 1.2 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 4 mm Cutting Edge Length (L): 8.7 mm Min. Turning Feed (ft(min)): 0.17 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.55 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN Unit: M
