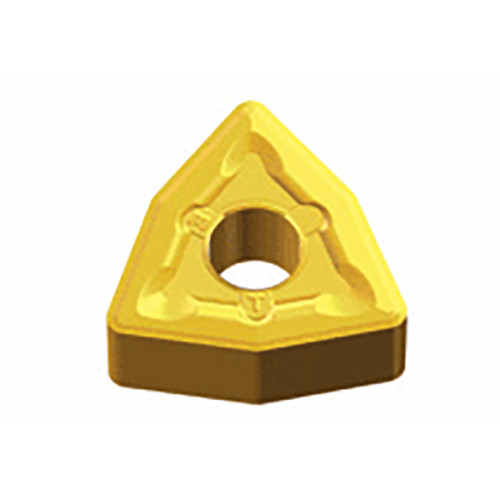

Taegutec WNMG 080412 ET TT9225

Product Code: 5523467

$23.58$21.44 Ex. GST

Product Code: 5523467 SKU 5523467 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Negative 80° Trigon inserts for rough machining of exotic materials

Weight	0.0106 kg
barcode
Additional Information	Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Grade: TT9225 Application:, Ext 95° App 80°Trigon, Inserts, Int 95° App 80° Trigon, Min D.O.C.: 0.8 mm Corner Radius (RE): 1.2 mm Depth of Cut Maximum (APMX): 4.5 mm Cutting Edge Length (L): 8.7 mm Min. Turning Feed (ft(min)): 0.2 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.5 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al203+TiCN Unit: M
