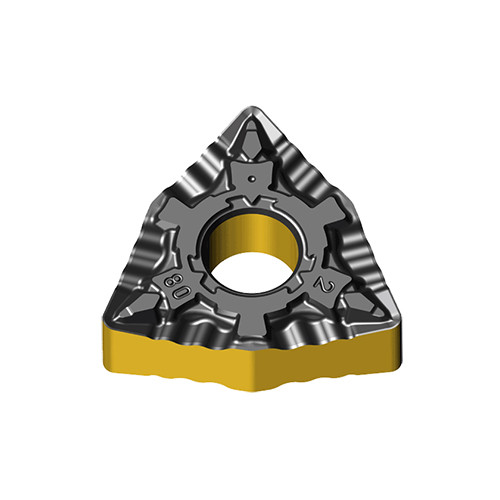

Taegutec WNMG 080412 MLP TT8125B

Product Code: 6198056

$23.58$21.44 Ex. GST

Product Code: 6198056 SKU 6198056 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Negative 80° Trigon inserts for semi-finishing to medium of steels with serrated cutting edge for good chip control in variable depth of cut

Weight	0.0097 kg
barcode
Additional Information	Applicable Material:, Steel, Grade: TT8125B Application:, Ext 95° App 80°Trigon, Inserts, Int 95° App 80° Trigon, Min D.O.C.: 0.6 mm Corner Radius (RE): 1.2 mm Depth of Cut Maximum (APMX): 3.5 mm Cutting Edge Length (L): 8.7 mm Min. Turning Feed (ft(min)): 0.15 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.5 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
