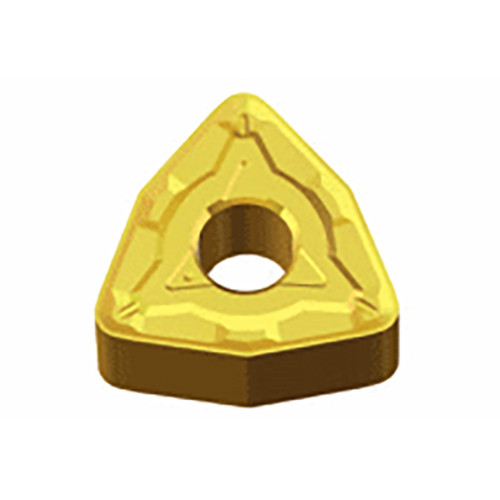

Taegutec WNMG 080412 WT TT8115B

Applicable Material:, Steel, Grade: TT8115B
Application:, Ext 95° App 80°Trigon, Inserts, Int 95° App 80° Trigon, Min D.O.C.: 1 mm
Corner Radius (RE): 1.2 mm
Depth of Cut Maximum (APMX): 4 mm
Cutting Edge Length (L): 8.7 mm
Min. Turning Feed (ft(min)): 0.2 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.8 mm/rev
Inscribed Circle Diameter (IC): 12.7 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN+Al2O3+TiN
Unit: M
