Taegutec WNMX 060404 FG TT8125B

Product Code: 6212480

$19.11$17.37 Ex. GST

Product Code: 6212480 SKU 6212480 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

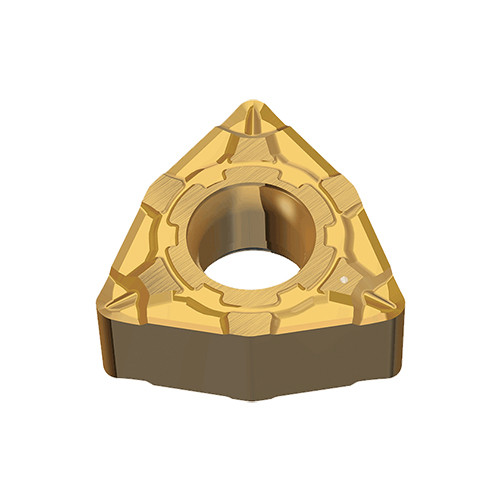

Negative 80° Trigon RHINOTURN inserts for finishing & semi- finishing of steels, stainless steels and cast irons

Weight	0.0050 kg
barcode
Additional Information	Applicable Material:, Steel, Grade: TT8125B Application:, Ext 95° App 80°Trigon, Inserts, Int 95° App 80° Trigon, Min D.O.C.: 0.2 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 2 mm Cutting Edge Length (L): 6.52 mm Min. Turning Feed (ft(min)): 0.07 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.3 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
