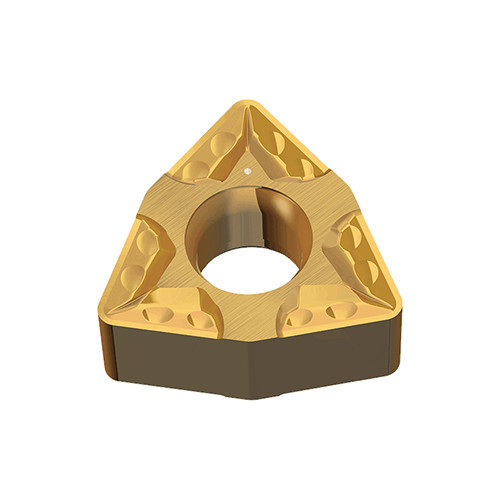

Taegutec WNMX 060408 MT TT5100

Product Code: 6129141

$19.11$17.37 Ex. GST

Product Code: 6129141 SKU 6129141 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Negative 80° Trigon RHINOTURN inserts for medium rough applications of steel, cast iron & stainless steel

Weight	0.0060 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Grade: TT5100 Application:, Ext 95° App 80°Trigon, Inserts, Int 95° App 80° Trigon, Min D.O.C.: 1 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 3 mm Cutting Edge Length (L): 6.52 mm Min. Turning Feed (ft(min)): 0.15 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.45 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
