Taegutec XEVT 160512R-AL K10

Description

Sharp ground & polished inserts in various corner R with V bottom & stopper for high speed machining of aluminum and non-ferrous materials

Weight	0.0106 kg
barcode

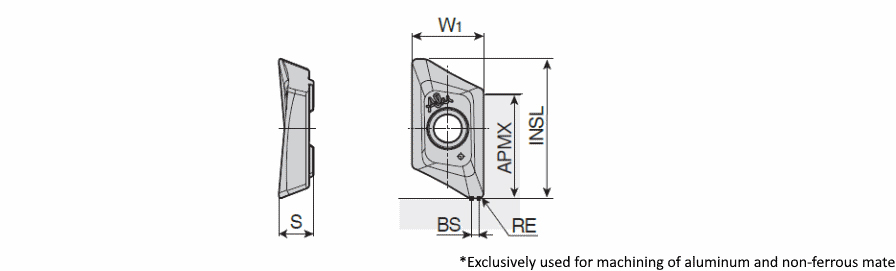

Additional Information	Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Grade: K10 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Step down machining, Maximum Feed per Tooth (fz(max)): 0.4 mm/tooth Cutting Edge Length (L): 21.8 mm Cutting Edge Material: Carbide Corner Radius (RE): 1.2 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 12 mm Measurement Type: Metric Insert Width (W1): 11.2 mm Body Material: Carbide Insert Thickness (S): 5.5 mm Unit: M Coating: Uncoated
