Taegutec XEVT 220620R-AL K10

Description

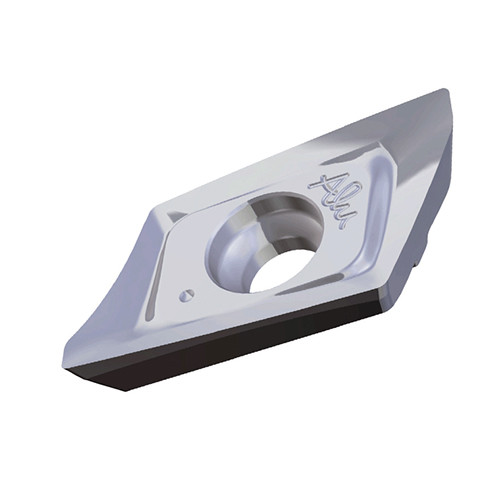

Sharp ground & polished inserts in various corner R with V bottom & stopper for high speed machining of aluminum and non-ferrous materials

Weight	0.0182 kg
barcode

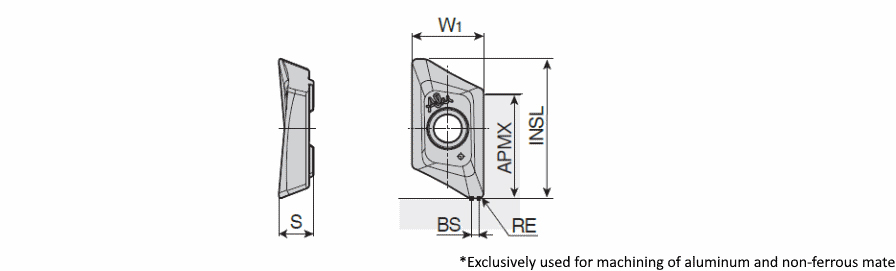

Additional Information	Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Grade: K10 Application:, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Slotting, Step down machining, Maximum Feed per Tooth (fz(max)): 0.6 mm/tooth Cutting Edge Length (L): 26.9 mm Cutting Edge Material: Carbide Corner Radius (RE): 2 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 18 mm Measurement Type: Metric Insert Width (W1): 13.6 mm Body Material: Carbide Insert Thickness (S): 7.3 mm Unit: M Coating: Uncoated
