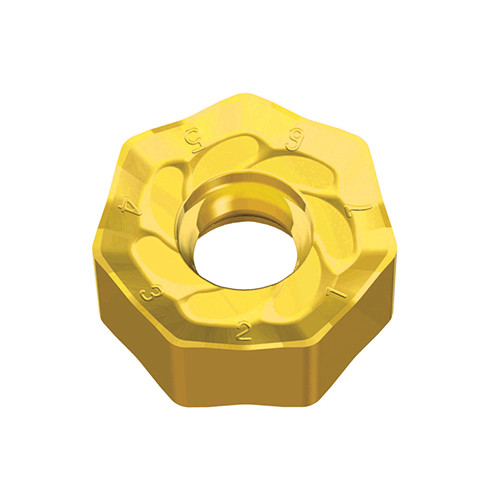

Taegutec XNHU 0605 ANN-MM TT2510

Product Code: 6135607

$45.52$41.38 Ex. GST

Product Code: 6135607 SKU 6135607 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Ground double-sided inserts of economical 14 cutting edges with optimized geometry for cast iron of max. depth of cut 3.5 mm

Weight	0.0112 kg
barcode

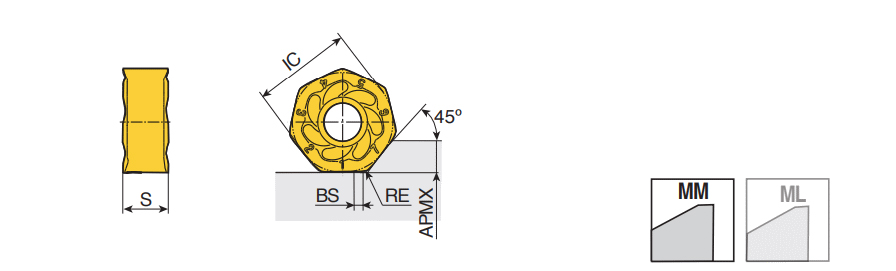

Additional Information	Applicable Material:, Steel, Hard Materials, Grade: TT2510 Application:, Chamfer & Serration, Facing, Inserts, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth Cutting Edge Length (L): 3.5 mm Cutting Edge Material: Carbide Corner Radius (RE): 1 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 3.5 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 13.7 mm Body Material: Carbide Insert Thickness (S): 6.2 mm Unit: M Coating: AlTiN
