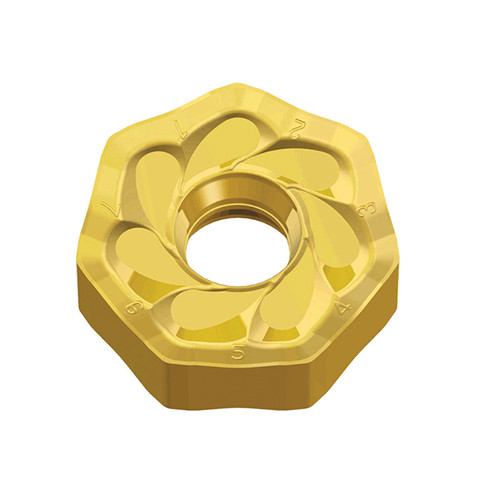

Taegutec XNHU 0906 ANTN-MM TT9080

Product Code: 5615019

$45.25$41.14 Ex. GST

Product Code: 5615019 SKU 5615019 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Ground double-sided inserts of economical 14 cutting edges with optimized geometry for cast iron in max. depth of cut 5.0 mm

Weight	0.0237 kg
barcode

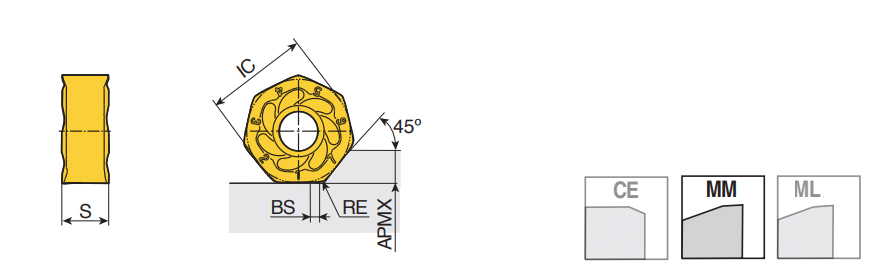

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Chamfer & Serration, Facing, Inserts, Maximum Feed per Tooth (fz(max)): 0.25 mm/tooth Cutting Edge Length (L): 5 mm Cutting Edge Material: Carbide Corner Radius (RE): 1 mm Minimum Feed per Tooth (fz(min)): 0.13 mm/tooth Depth of Cut Maximum (APMX): 1.5 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 18.5 mm Body Material: Carbide Insert Thickness (S): 6.35 mm Unit: M Coating: TiAlN+TiN
