Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec XNMG 090404 FLP TT8105B
$15.75$14.32 Ex. GST

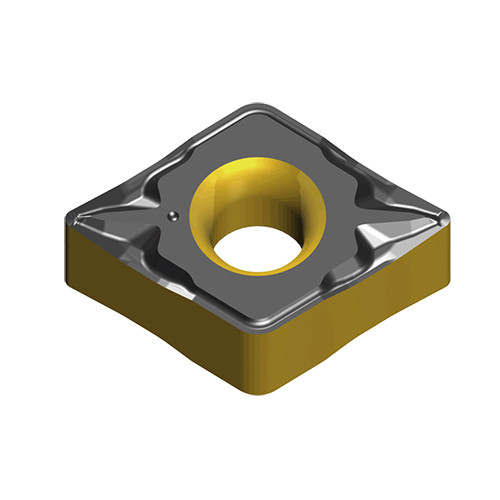

Unique negative 70° rhombic inserts for finishing of steels
Applicable Material:, Steel, Grade: TT8105B Application:, Ext 100° App 70°Diamond, Ext 93° App 70°Diamond, Inserts, Int 100° App 70° Diamond, Min D.O.C.: 0.2 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 1.5 mm Cutting Edge Length (L): 9.25 mm Min. Turning Feed (ft(min)): 0.07 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.3 mm/rev Inscribed Circle Diameter (IC): 8.7 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN-Al203-TiN Unit: M
