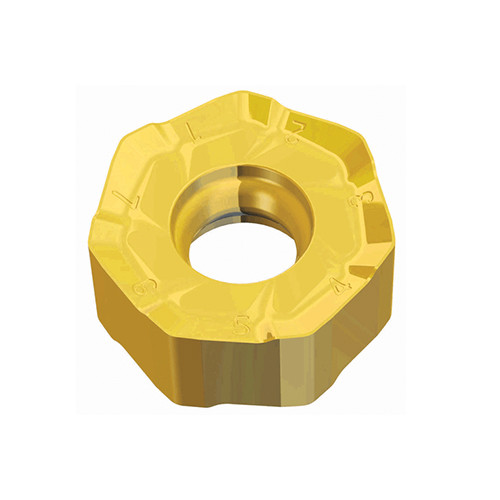

Taegutec XNMU 0605 ANR-M TT6080

Product Code: 6115568

$33.13$30.12 Ex. GST

Product Code: 6115568 SKU 6115568 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Double-sided inserts with economical 14 cutting edges for steel and cast iron milling in maximum depth of cut 3.5 mm

Weight	0.0111 kg
barcode

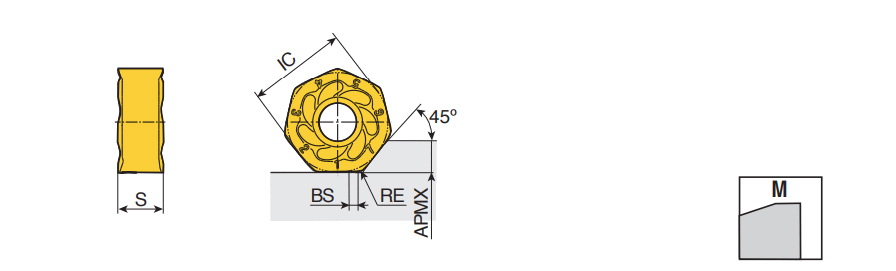

Additional Information	Applicable Material:, Cast Iron, Hard Materials, Grade: TT6080 Application:, Chamfer & Serration, Facing, Inserts, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth Cutting Edge Length (L): 3.5 mm Cutting Edge Material: Carbide Corner Radius (RE): 1 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 3 mm Number of Cutting Edges: 14 Inscribed Circle Diameter (IC): 13.7 mm Measurement Type: Metric Insert Thickness (S): 6.2 mm Body Material: Carbide Coating: AlTiN+TiN Unit: M
