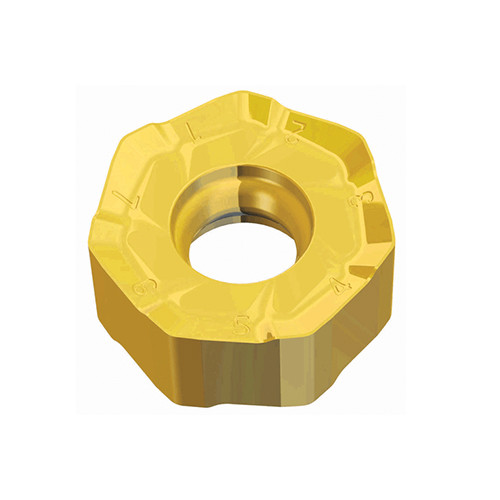

Taegutec XNMU 0605 ANR-M TT9080

Description

Double-sided inserts with economical 14 cutting edges for steel and cast iron milling in maximum depth of cut 3.5 mm

Weight	0.0125 kg
barcode

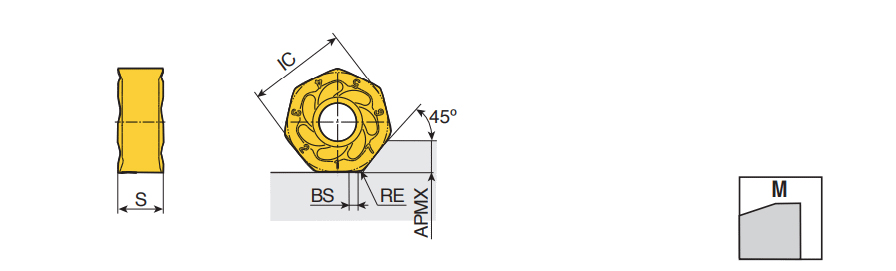

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Chamfer & Serration, Facing, Inserts, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth Cutting Edge Length (L): 3.5 mm Cutting Edge Material: Carbide Corner Radius (RE): 1 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 3 mm Number of Cutting Edges: 14 Inscribed Circle Diameter (IC): 13.7 mm Measurement Type: Metric Insert Thickness (S): 6.2 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M
