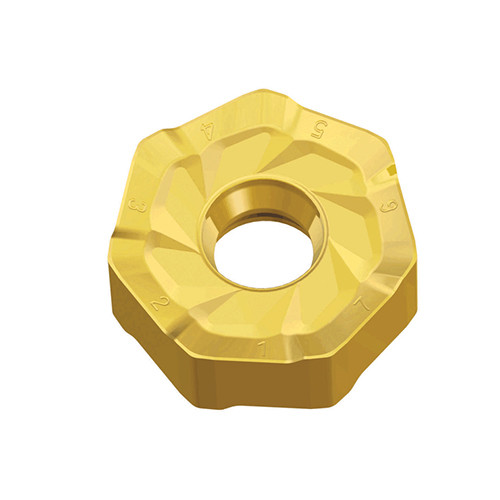

Taegutec XNMU 0906 ANTR-M TT7080

Product Code: 5614594

$39.68$36.07 Ex. GST

Product Code: 5614594 SKU 5614594 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Double-sided inserts with economical 14 cutting edges for steel and cast iron roughing in maximum depth of cut 4.5 mm

Weight	0.0228 kg
barcode

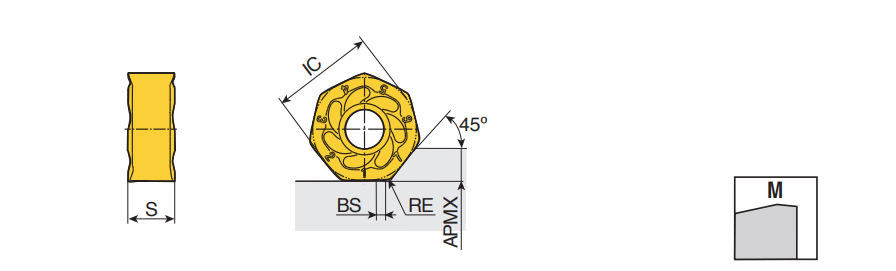

Additional Information	Applicable Material:, Steel, Cast Iron, Grade: TT7080 Application:, Chamfer & Serration, Facing, Inserts, Maximum Feed per Tooth (fz(max)): 0.3 mm/tooth Cutting Edge Length (L): 4.5 mm Cutting Edge Material: Carbide Corner Radius (RE): 1 mm Minimum Feed per Tooth (fz(min)): 0.15 mm/tooth Depth of Cut Maximum (APMX): 4 mm Number of Cutting Edges: 14 Inscribed Circle Diameter (IC): 18.5 mm Measurement Type: Metric Insert Thickness (S): 7.4 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M
