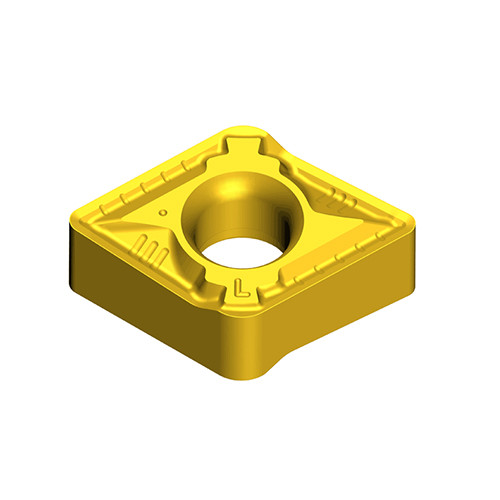

Taegutec XNMV 110508R-BS TT3010

Applicable Material:, Super-Alloys / Titanium, Grade: TT3010
Application:, Ext15(BWT)&95(FWT) 80°triangul, High Feed & All directional Turning, Inserts, Min D.O.C.: 0.5 mm
Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 1.8 mm
Cutting Edge Length (L): 11.82 mm
Min. Turning Feed (ft(min)): 0.4 mm/rev
Insert Thickness (S): 5.56 mm
Max. Turning Feed (ft(max)): 0.8 mm/rev
Inscribed Circle Diameter (IC): 11.11 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: AlTiN+TiN
Unit: M
