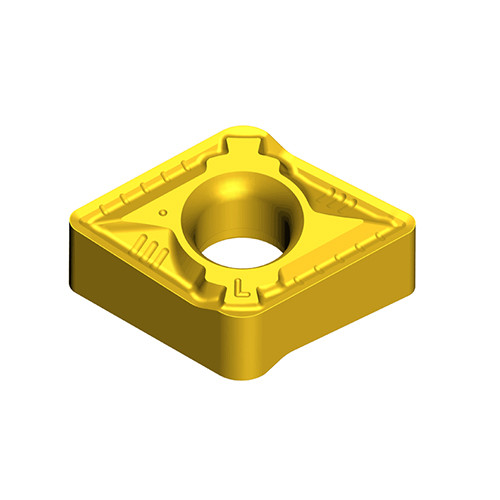

Taegutec XNMV 110508R-BS TT8125B

Description

70° corner angle double-sided 4 cutting edge insert for deepdepth of cut forward turning and high feed back turning in super alloy steel machining.

Weight	0.0310 kg
barcode
Additional Information	Applicable Material:, Steel, Grade: TT8125B Application:, Ext15(BWT)&95(FWT) 80°triangul, High Feed & All directional Turning, Inserts, Min D.O.C.: 0.5 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 1.8 mm Cutting Edge Length (L): 11.82 mm Min. Turning Feed (ft(min)): 0.4 mm/rev Insert Thickness (S): 5.56 mm Max. Turning Feed (ft(max)): 0.8 mm/rev Inscribed Circle Diameter (IC): 11.11 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
