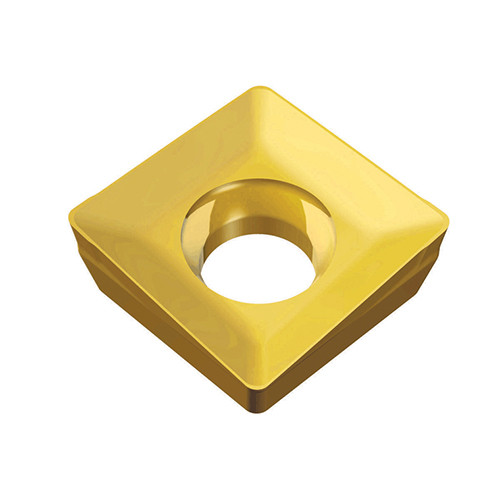

Taegutec XOMT 060204 TT8020

Description

Inserts for Milling, Drilling and Boring with 2 Right -and 2 Left-Hand Cutting Edges for General Use

Weight	0.0020 kg
barcode

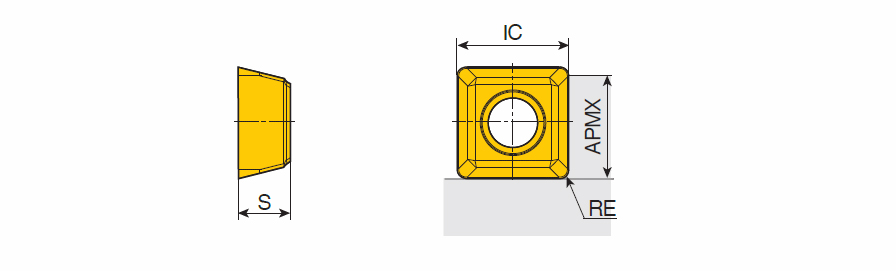

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8020 Application:, Counter Boring, Drill Mill, Facing, Helical Interpolation, Inserts, Rampdown, Shouldering, Side Plunging, Slotting, Step down machining, Maximum Feed per Tooth (fz(max)): 0.06 mm/tooth Cutting Edge Length (L): 5.6 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.4 mm Minimum Feed per Tooth (fz(min)): 0.03 mm/tooth Depth of Cut Maximum (APMX): 4.48 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 6.16 mm Body Material: Carbide Insert Thickness (S): 2.56 mm Unit: M Coating: TiCN
