Taegutec ZNHT 018-08 TT9080

Product Code: 5615422

$30.06$27.33 Ex. GST

Product Code: 5615422 SKU 5615422 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

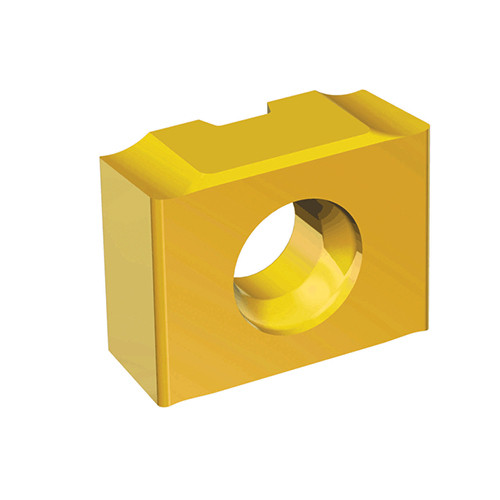

Taegutec ZNHT 018-08 TT9080

Taegutec ZNHT 018-08 TT9080 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Precision ground tangential inserts of slotting cutters with 4 cutting edges for general applications

Additional information

Weight	0.0027 kg
barcode

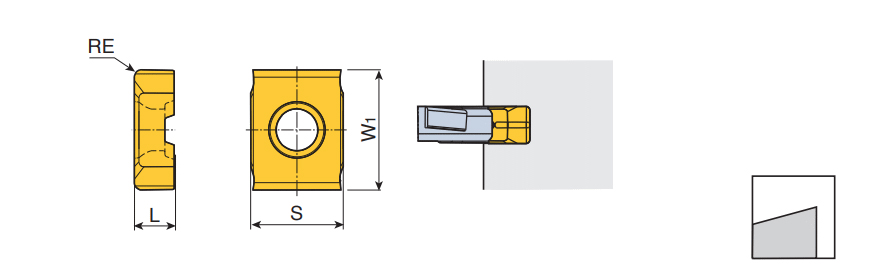

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Bottom Shouldering, Inserts, Side Slotting, Slitting, T Slotting, Maximum Feed per Tooth (fz(max)): 0.08 mm/tooth Cutting Edge Length (L): 10 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth Depth of Cut Maximum (APMX): 0 mm Measurement Type: Metric Insert Width (W1): 7.5 mm Body Material: Carbide Insert Thickness (S): 1.8 mm Unit: M Coating: TiAlN+TiN

Brand

Taegutec
