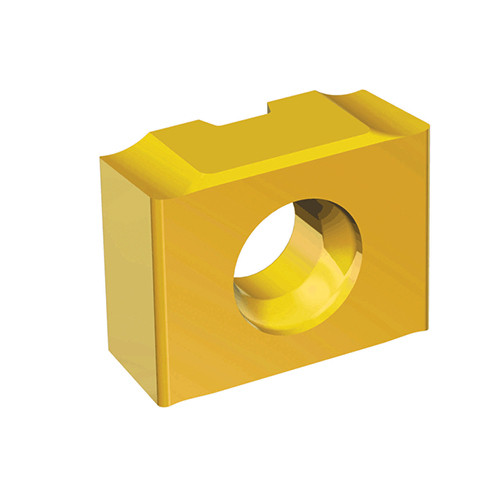

Precision ground tangential inserts of slotting cutters with 4 cutting edges for general applications
Additional information
Weight
0.0075 kg
barcode
Additional Information
Applicable Material:, Cast Iron, Hard Materials, Grade: TT6080
Application:, Bottom Shouldering, Inserts, Side Slotting, Slitting, T Slotting, Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth
Cutting Edge Length (L): 13 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 0.8 mm
Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth
Depth of Cut Maximum (APMX): 0 mm
Measurement Type: Metric
Insert Width (W1): 10 mm
Body Material: Carbide
Insert Thickness (S): 4.3 mm
Unit: M
Coating: AlTiN+TiN
