Taegutec ZNHT 053-08 TT8080

Product Code: 5612973

$31.88$28.98 Ex. GST

Product Code: 5612973 SKU 5612973 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

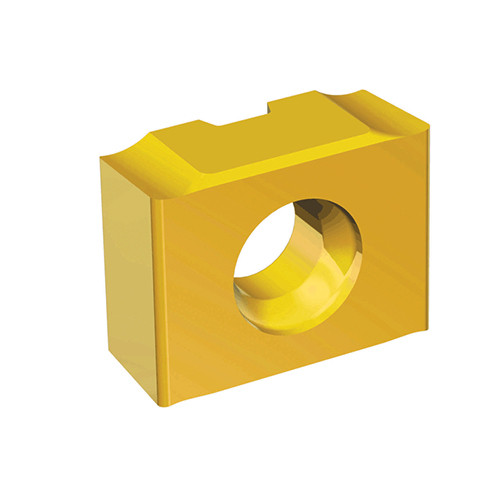

Precision ground tangential inserts of slotting cutters with 4 cutting edges for general applications

Weight	0.0086 kg
barcode

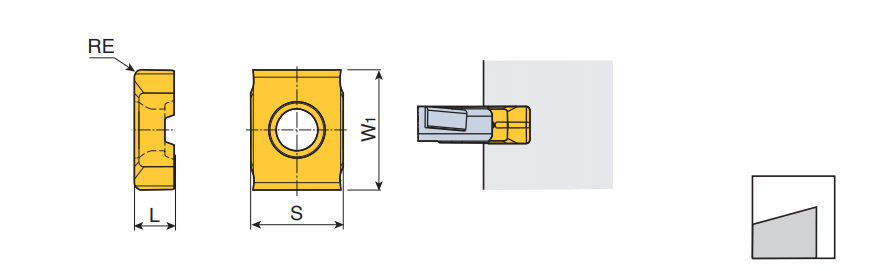

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8080 Application:, Bottom Shouldering, Inserts, Side Slotting, Slitting, T Slotting, Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth Cutting Edge Length (L): 13 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.05 mm/tooth Depth of Cut Maximum (APMX): 0 mm Measurement Type: Metric Insert Width (W1): 10 mm Body Material: Carbide Insert Thickness (S): 5.3 mm Unit: M Coating: TiAlN+TiN
