Taegutec ZNHU 110-08 TT6080

Product Code: 5613112

$34.44$31.31 Ex. GST

Product Code: 5613112 SKU 5613112 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

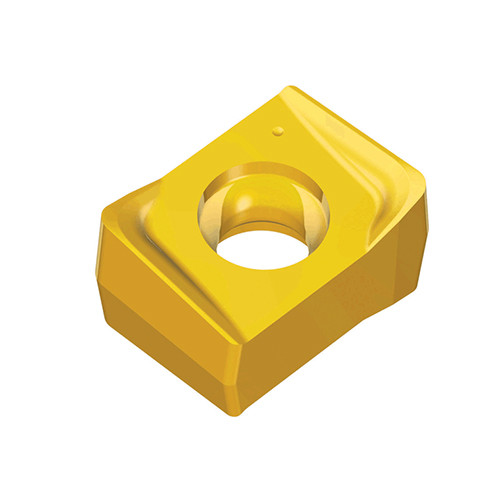

Periphery ground slotting inserts with helical cutting edges and economical 4 cutting edges for general applications

Weight	0.0109 kg
barcode

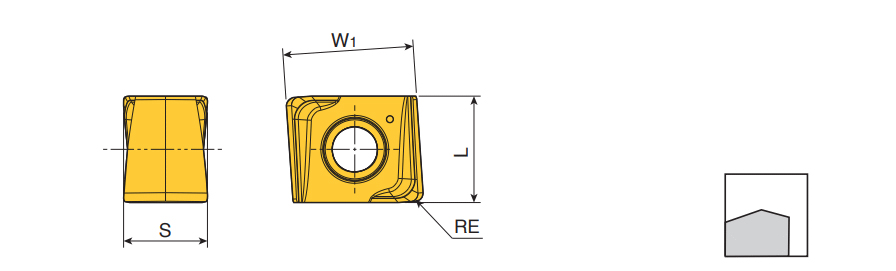

Additional Information	Applicable Material:, Cast Iron, Hard Materials, Grade: TT6080 Application:, Bottom Shouldering, Inserts, Side Slotting, Slitting, T Slotting, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth Cutting Edge Length (L): 10.6 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.8 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 0 mm Measurement Type: Metric Insert Width (W1): 13 mm Body Material: Carbide Insert Thickness (S): 8.38 mm Unit: M Coating: AlTiN+TiN
