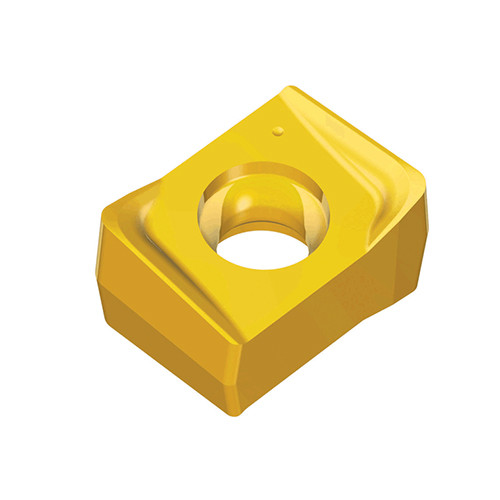

Taegutec ZNHU 140-08 TT9080

Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080
Application:, Bottom Shouldering, Inserts, Side Slotting, Slitting, T Slotting, Maximum Feed per Tooth (fz(max)): 0.21 mm/tooth

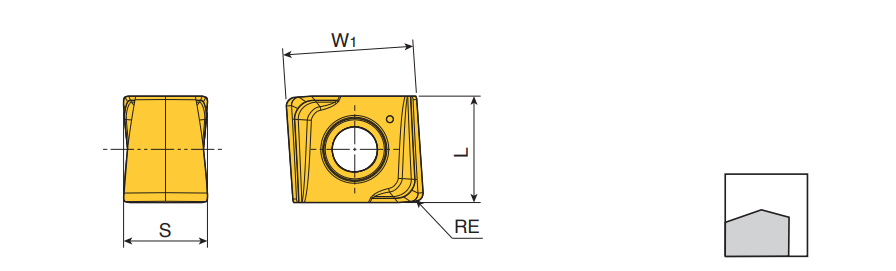

Cutting Edge Length (L): 14 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 0.8 mm
Minimum Feed per Tooth (fz(min)): 0.105 mm/tooth
Depth of Cut Maximum (APMX): 0 mm
Measurement Type: Metric
Insert Width (W1): 13 mm
Body Material: Carbide
Insert Thickness (S): 9.59 mm
Unit: M
Coating: TiAlN+TiN
